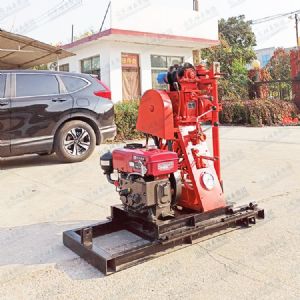

    BZ-50S

    The company has professional and technical personnel, R&D engineers and after-sales service personnel to form an experienced team.

    Soil sampling rig

    Portable exploration rig

    Hydraulic core drill

    Reverse/positive circulation well drilling rig

    The engineering drilling machine

    BZ-50S

    Mobile Station
    查看手機(jī)站

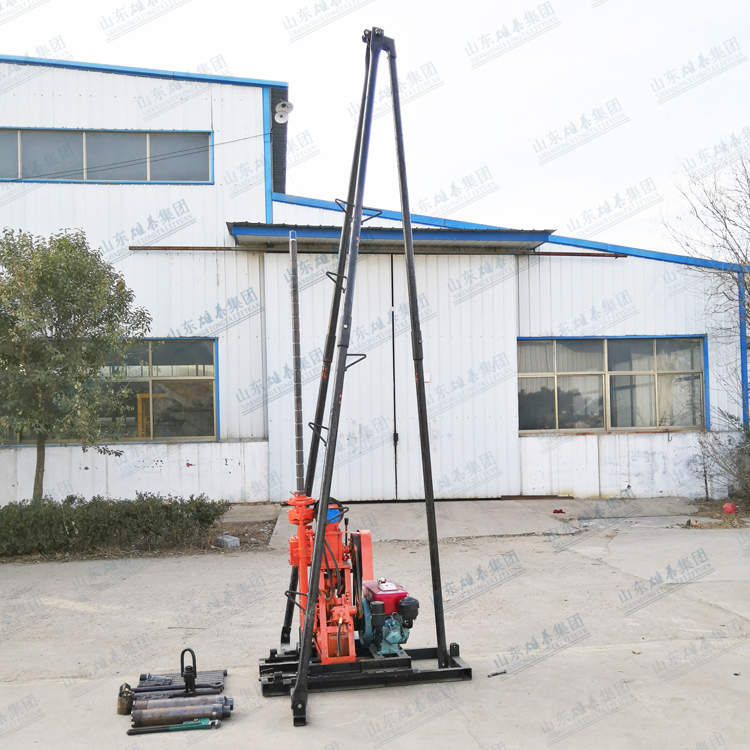

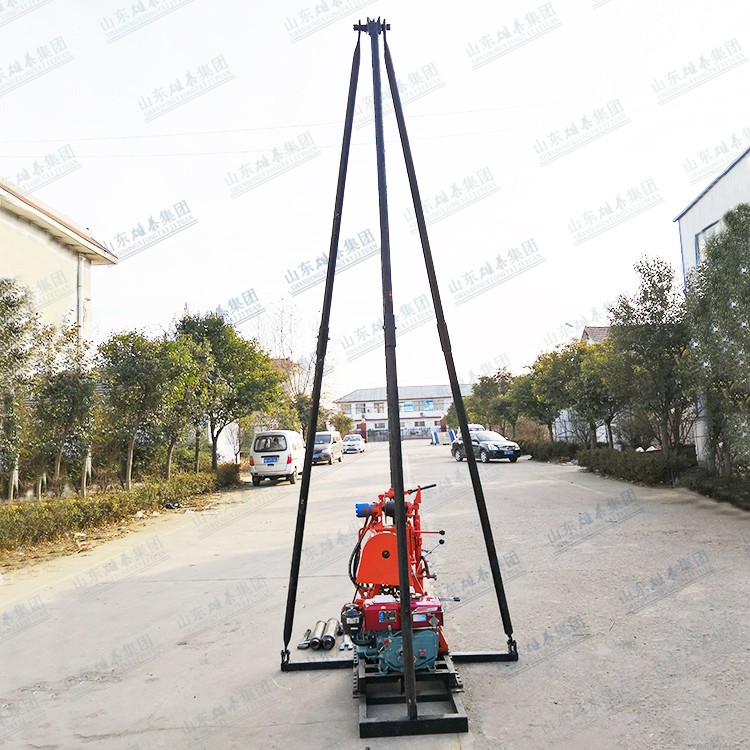

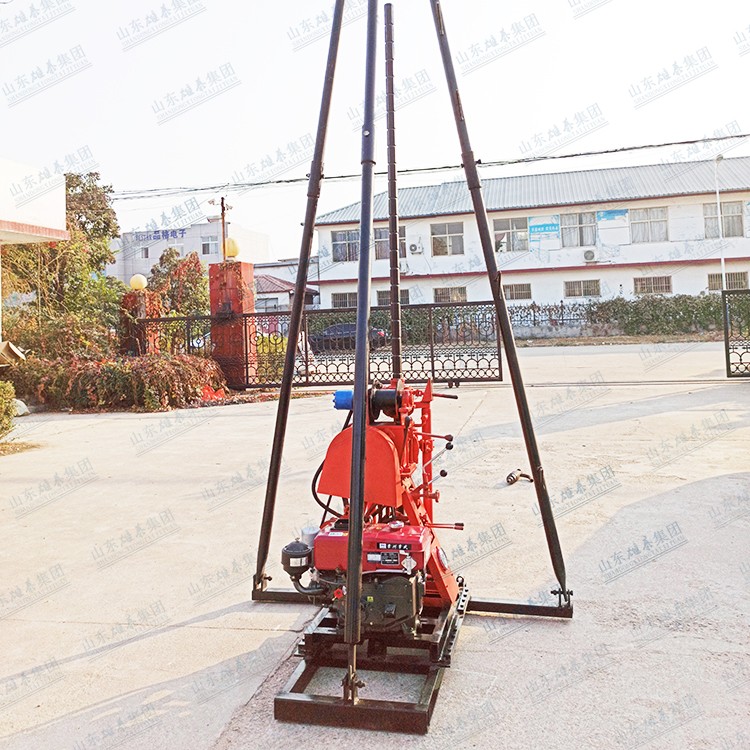

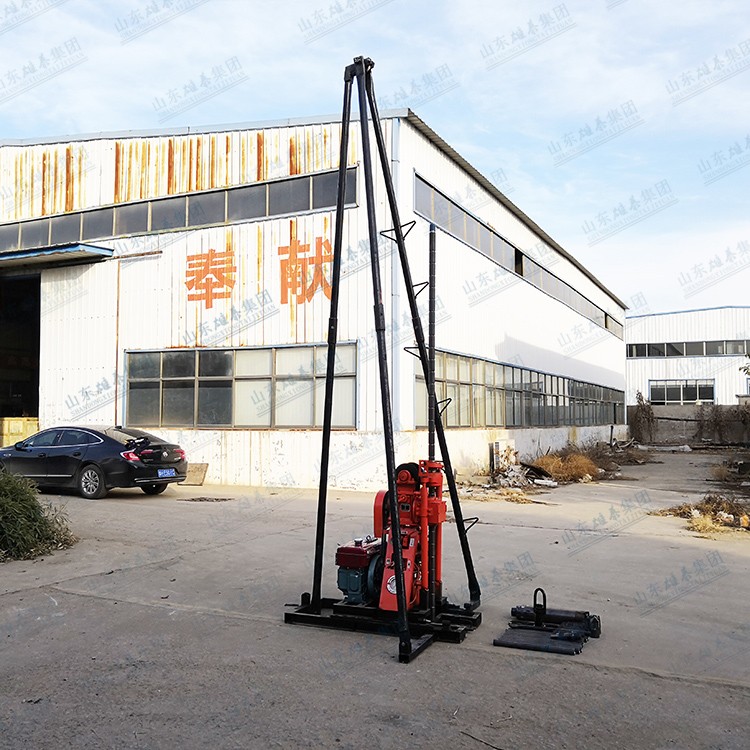

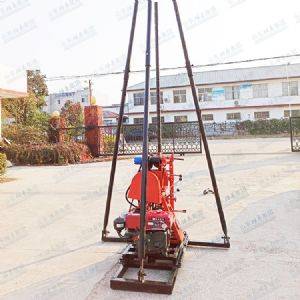

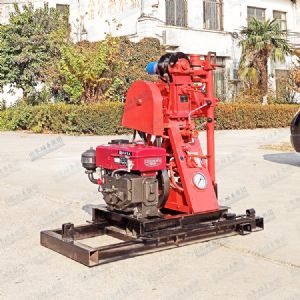

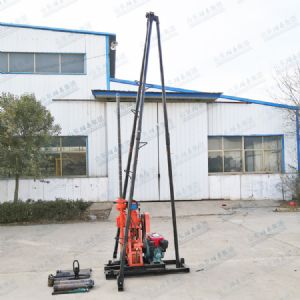

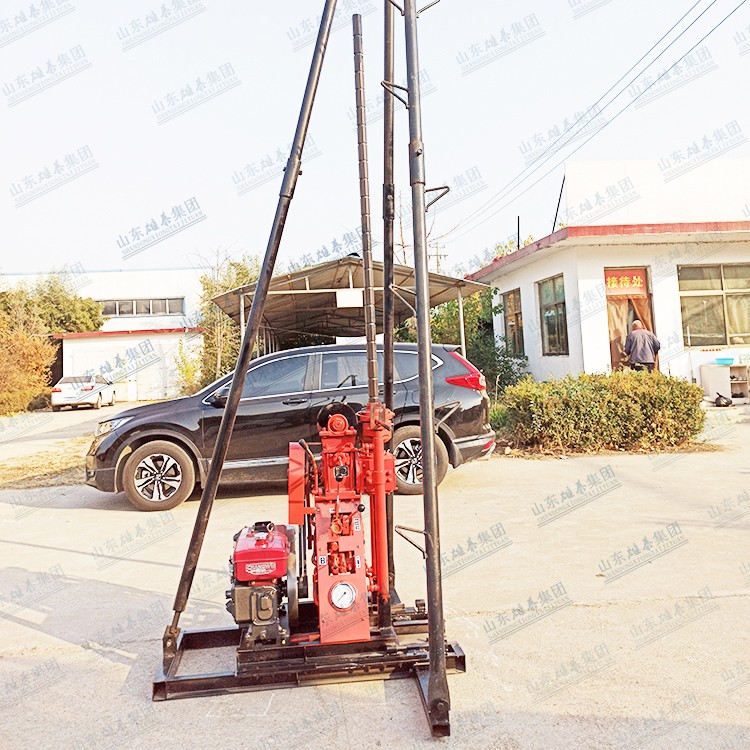

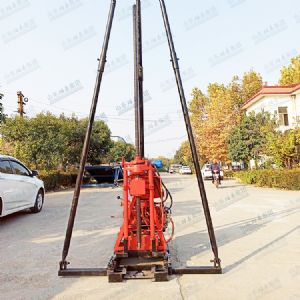

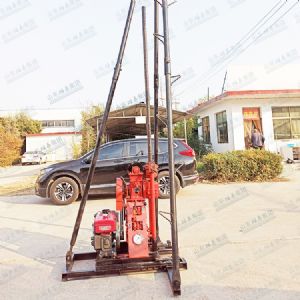

    The bz-50s drilling rig produced by our factory is upgraded on the basis of 50 series drilling rigs. It solves the problem that the traditional small-scale hydraulic drilling rig has short drill pipe and needs to repeatedly lift and run in the hole when drilling. This model increases the function of moving the machine. The length of the drill pipe reaches three meters (supporting customization), and the height of the drilling tower is 4.5 meters. It simplifies the operation process and lifts the drill pipe Increased drilling speed.

    信息詳情



    1. Product introduction

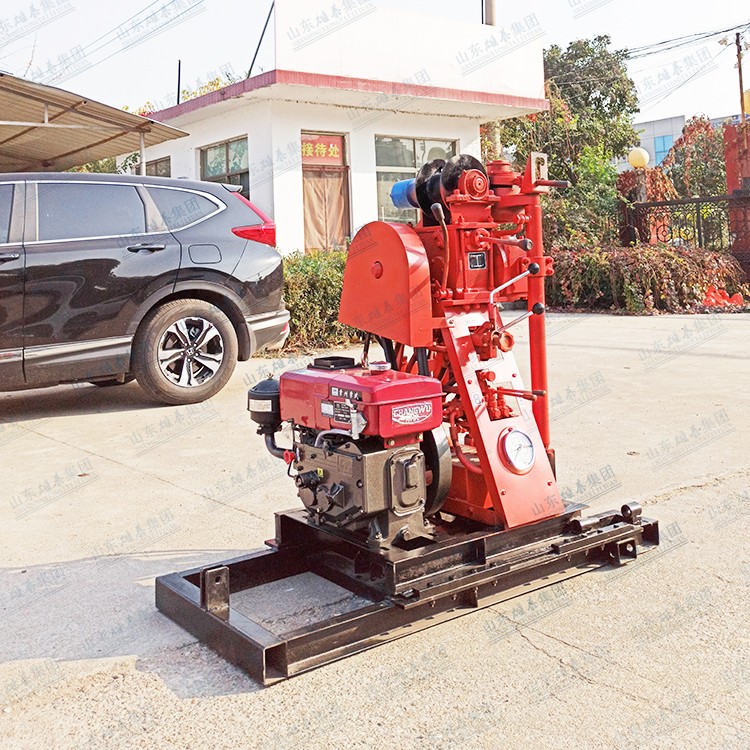

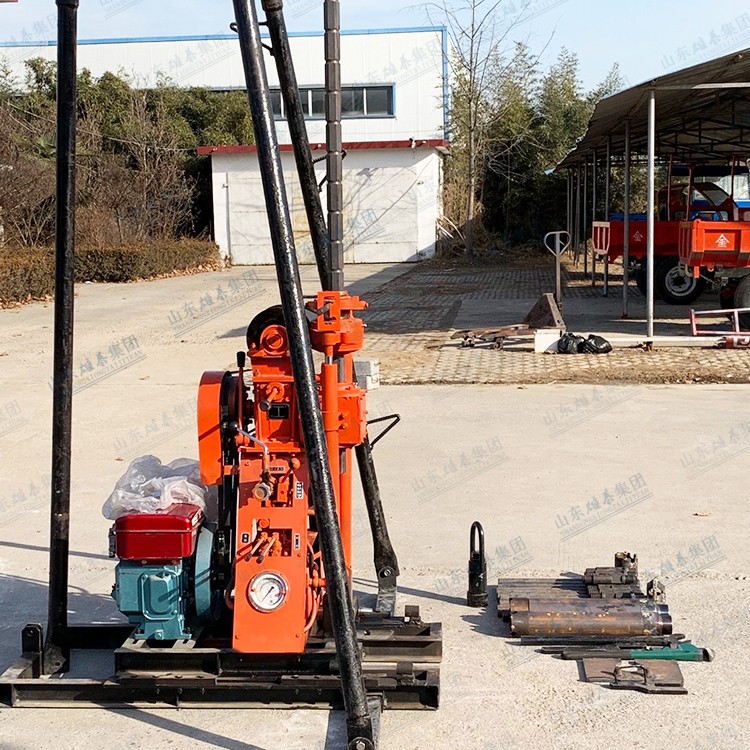

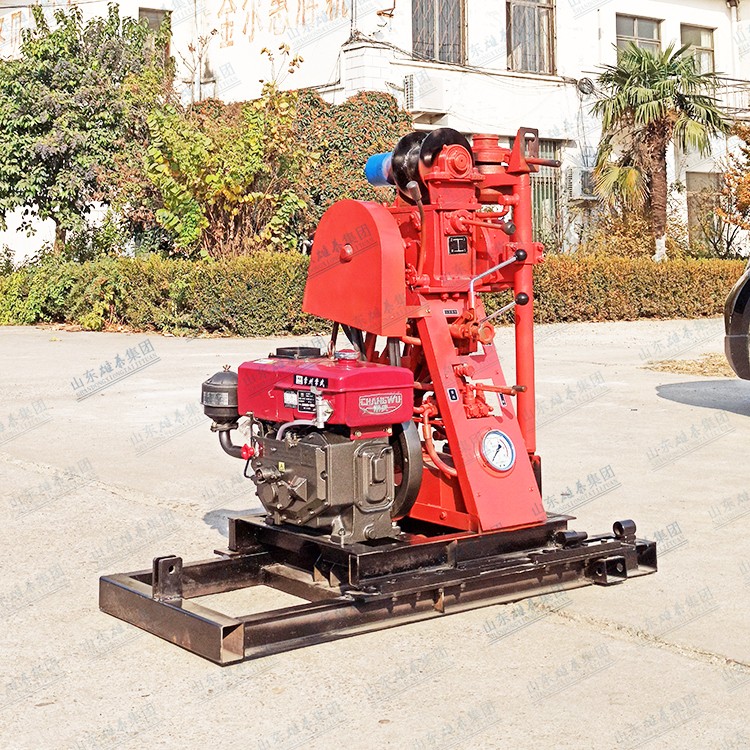

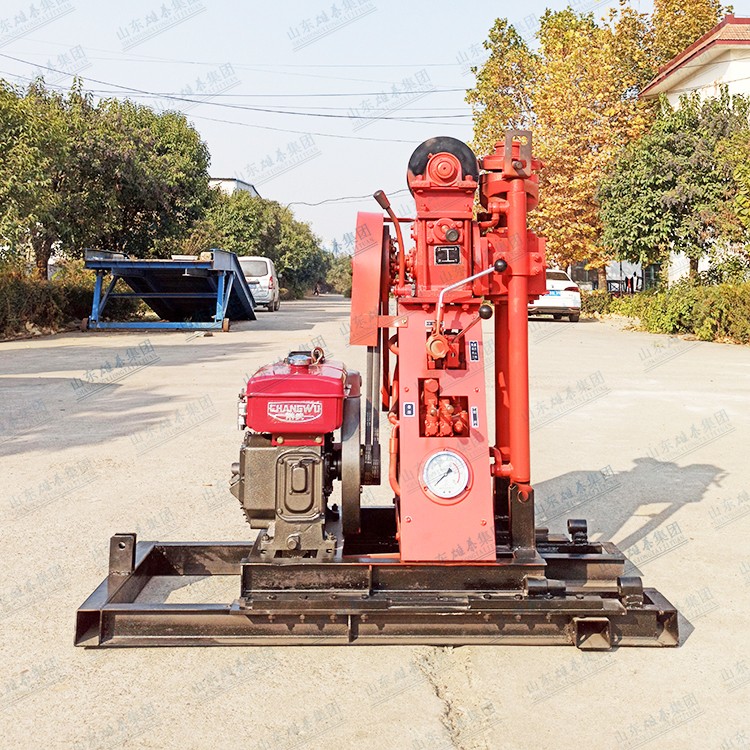

    The BZ-50S drilling rig produced by our factory is upgraded on the basis of the 50 series drilling rig, which solves the operation mode of traditional small hydraulic drilling rigs that have short drill rods and need to repeatedly lift and lower the drill when drilling. This model adds Machine moving function, the length of the drill pipe is up to three meters (customized support), and the height of the drill tower is 4.5 meters, which simplifies the operation process and increases the drilling speed.

    2. Product features

    <1>. With hydraulic automatic feed mechanism, improve drilling efficiency and reduce physical labor of workers.

    <2>. The ball clamp clamping mechanism is used instead of the chuck, and the lever can be reversed without stopping, which is easy to operate, safe and reliable.3. The handle is convenient for centralized operation.4. The structure is compact, the base is stable, and the floor space is small.5. Light weight, strong decomposability, easy to move, suitable for working in plains or mountain areas.

    3. Machine parameters

    BZ-50SHydraulic rig parameters
    Drilling depth50m
    Maximum opening diameter108mm
    Final hole diameter75mm
    Active drill pipe50*3000mm
    Drill pipe diameter42mm
    Drilling angle90°
    Power (diesel engine)8HP 5.88kw
    Structure weight290kg(含柴油機(jī))
    size104*80*140cm
    Vertical axis
    Vertical shaft speed (third gear)142/285/570r/min
    Vertical axis stroke450mm
    Maximum feed force of vertical shaft350kg
    Maximum lifting capacity of vertical shaft250kg

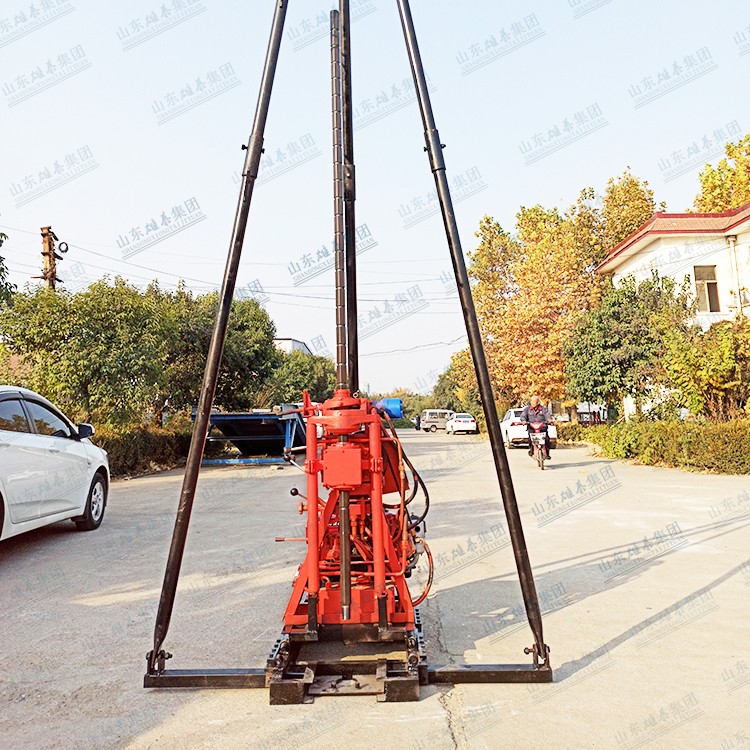

    Rig
    Tower leg specifications (triangular tower)60mm
    height4.5m
    Rated load1.3T


    Shandong XIONGTAI Machinery Group Co., Ltd


    Consultation hotline:400-0537-369

    BZ-50S
    BZ-50S 2019-5-28 This article is read 3156 second
